Il nucleo delle specifiche definisce la gestione del modello del ciclo di vita del software, i moduli (chiamati bundles), un service registry e un ambiente di esecuzione.
OSGi nasce con lo scopo di creare sistemi embedded per mercati residenziali, automotive e M2M. In questi contesti è spesso necessario comunicare con i devices attraverso protocolli differenti.
Il fine, quindi, era quello di fornire un modello di programmazione capace di realizzare servizi end-to-end creando uno strato di astrazione che unificasse i differenti protocolli.
We’ve all used development platforms in the past, such as Java Enterprise Edition (JEE), and even though there have been great advances in this industry, we’re still building large complex systems, which are hard to develop, maintain, and extend.
Esistono diverse implementazioni di OSGi. Quelle più complete sono:
Il framework può essere rappresentato con tre layer:
Il cuore del module layer è il Bundle.
Un Bundle è un JAR che contiene metadati extra (manifest).
A differenza dei JAR il bundle ha:
Grazie al manifest è possibile estendere la visibilità del classpath dichiarando esplicitamente le proprie dipendenze
Nel manifest viene specificato anche:
Esempi:
Manifest-Version: 1.0 Build-Jdk: 1.7.0_40 Built-By: gdg-firenze Created-By: Apache Maven
Manifest-Version: 1.0 Bnd-LastModified: 1386750447262 Build-Jdk: 1.7.0_40 Built-By: gdg-firenze Bundle-ManifestVersion: 2 Bundle-Name: GDG Firenze :: Sensormix :: Example Bundle Bundle-SymbolicName: example-bundle Bundle-Vendor: GDG Firenze :: Sensormix Team Bundle-Version: 1.0.0.SNAPSHOT Bundle-Activator: com.google.developers.gdgfirenze.dataservice.Activator Created-By: Apache Maven Bundle Plugin Export-Package: com.google.developers.gdgfirenze.model;version="1.0.0.SNAPSHOT", com.google.developers.gdgfirenze.osgi;version="1.0.0.SNAPSHOT", com.google.developers.gdgfirenze.service;version="1.0.0.SNAPSHOT" Import-Package: javax.jws,javax.jws.soap,javax.xml.bind.annotation,javax.xml.ws Tool: Bnd-1.50.0
Esternamente gestisce il ciclo di vita del bundle.
Internamente definisce Bundle Activator
= public static void main(String[] args)
L’OSGi service layer promuove l’approccio basato su interface ed in particolare la separazione tra interfacce e implementazioni.
I Servizi OSGi sono interfacce Java che rappresentano un contratto tra il service provider e i service clients.
L’OSGi definisce un set minimo di servizi per agevolare lo sviluppo di applicazioni modulari
Karaf è un OSGi container in cui sono deployati bundles (e servizi) aggiuntivi per fornire ulteriori funzionalità tra cui Hot deployment, Dynamic configuration, Logging System, Extensible Shell console (SSH)
Karaf è un chiaro esempio di architettura basata su OSGi
Le principali funzionalità di ServiceMix sono:
Altre funzionalità offerte da ServiceMix:
Lo springframework fornisce molte features interessanti (dependency injection, ORM, AOP,...)
Lo Spring Deployer riconosce i file Spring all'interno del folder META-INF/spring di un Jar, e ne istanzia i bean che vi sono definiti, senza necessità di utilizzare le API OSGi
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:context="http://www.springframework.org/schema/context" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd"> <bean id="consumer" class="com.myapplication.HelloWorldConsumer" destroy-method="osgiDestroy" init-method="osgiInit"/> </beans>
Spring DM permette di utilizzare servizi OSGi da Spring in modo trasparente.
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:osgi="http://www.springframework.org/schema/osgi" xmlns:util="http://www.springframework.org/schema/util" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/osgi http://www.springframework.org/schema/osgi/spring-osgi.xsd"> <osgi:service ref="eventService" interface="com.myapplication.HelloWorldService" /> </beans>
Cosa si intende quando parliamo di integrazione?
Trovare una soluzione al seguente problema:
Come posso far funzionare insieme molteplici applicazioni attraverso lo scambio di informazioni?
Gli Enterprise Integration Patters offrono soluzioni per affrontare il precedente problema.
Cosa sono gli EIP?
I principali metodi tramite cui avviene integrazione sono:
Gli EIP si focalizzano sulla integrazione via “messaging” e definiscono una notazione per rappresentare le soluzioni di integrazione.
Integrare è però difficile perchè esiste una vasta eterogeneità di protocolli, interfacce e formati.
Come si possono implementare su una piattaforma Java gli Enterprise Integration Pattern?
con
Apache Camel
Apache Camel è un framework di integrazione open-sorce versatile basato sugli Enterprise Integration Patterns del libro di Hohpe e Woolf.
Include un vasto insieme di componenti per funzionare con molti protocolli di trasporto e formati dati e permette di definire regole di instradamento e intermediazione attraverso l’uso di domain-specific language.
...si presta talmente bene alla integrazione che ServiceMix, dalla versione 3 alla 4, ha abbandonato la tecnologia JBI per adottare un nuovo approccio alla integrazione basato su Camel e OSGi.
from newOrder
choice
when isWidget to widget
otherwise to gadget
public class MyRoute extends RouteBuilder { public void configure() throws Exception { from("activemq:queue:newOrder") .choice() .when(xpath("/order/product = 'widget'")) .to("activemq:queue:widget") .otherwise() .to("activemq:queue:gadget") .end(); } }
<camelContext xmlns="http://camel.apache.org/schema/spring"> <route> <from uri="activemq:queue:newOrder"/> <choice> <when> <xpath>/order/product = 'widget'</xpath> <to uri="activemq:queue:widget"/> </when> <otherwise> <to uri="activemq:queue:gadget"/> </otherwise> </choice> </route> </camelContext>
import org.apache.camel.CamelContext; import org.apache.camel.builder.RouteBuilder; import org.apache.camel.impl.DefaultCamelContext; public class CamelExample { public static void main(String[] args) throws Exception { CamelContext context = new DefaultCamelContext(); context.addRoutes(new RouteBuilder() { public void configure() { from("jetty:http://0.0.0.0:8080/tellMeSomething") .transform(simple("You say ${in.body}")) .to("velocity:response.vm"); } }); context.start(); System.out.println("Press ENTER to exit"); System.in.read(); context.stop(); } }
Una volta attivati i bundle di Camel su Karaf-ServiceMix...
...è possibile definire rotte direttamente nei file Spring XML, oppure utilizzare dei RouteBuilder in Java per avviare delle applicazioni che usano Camel all’interno di ServiceMix.
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans"> <camelContext xmlns="http://camel.apache.org/schema/spring"> <route> <from uri="jetty:http://0.0.0.0:8080/tellMeSomething"/> <convertBodyTo type="java.lang.String"/> <transform> <simple>You say ${in.body}</simple> </transform> <to uri="velocity:response.vm" /> </route> </camelContext> </beans>
ActiveMQ | ActiveMQ Broker | Activiti | AHC | AMQP | APNS | Atom | Avro | |
AWS-CW | AWS-DDB | AWS-S3 | AWS-SDB | AWS-SES | AWS-SNS | AWS-SQS | Bean | |
Bean Validation | Browse | Cache | Class | CMIS | Cometd | Context | ControlBus | |
CouchDB | Crypto | CXF | CXF Bean | CXFRS | DataFormat | DataSet | Db4o | |
Direct | Direct-VM | Disruptor | DNS | EJB | ElasticSearch | Esper | EventAdmin | |
Exec | File | Flatpack | FOP | FreeMarker | FTP | FTPS | ||
GAuth | Geocoder | GHttp | GLogin | GMail | GTask | Guava EventBus | Hazelcast | |
HBase | HDFS | Hibernate | HL7 | HTTP | HTTP4 | iBATIS | IMAP | |
IMAPS | Infinispan | IRC | JavaSpace | JBI | JCIFS | jclouds | JCR | |
JDBC | Jetty | JGroups | JMS | JMX | JPA | Jsch | JT/400 | |
Kestrel | Krati | Language | LDAP | Log | Lucene | MINA | MINA2 | |
Mock | MongoDB | MQTT | MSV | Mustache | MVEL | MyBatis | Nagios | |
Netty | Netty HTTP | NMR | OptaPlanner | Pax-Logging | POP3 | POP3S | Printer | |
Properties | Quartz | Quartz2 | Quickfix | RabbitMQ | RCode | Ref | Restlet | |
RMI | RNC | RNG | Routebox | RSS | Salesforce | SAP NetWeaver | Scalate | |
SEDA | SERVLET | SFTP | Sip | SJMS | Smooks | SMPP | SMTP | |
SMTP | SNMP | Solr | Splunk | Spring Event | Spring LDAP | Spring Neo4j | Spring Redis | |
Spring Web Services | SpringBatch | SpringIntegration | SQL | StAX | Stomp | Stream | StringTemplate | |
Stub | Test | Timer | Validation | Velocity | Vertx | VirtualBox | ||
VM | Weather | Websocket | XML Security | XMPP | XQuery | XSLT | Yammer | |
ZeroMQ | Zookeeper |
Avro | Base64 | BeanIO | Bindy | Castor | |
Crypto | CSV | EDI | Flatpack DataFormat | GZip data format | |
HL7 DataFormat | JAXB | JiBX | JSON | PGP | |
Protobuf | Serialization | SOAP | String | XmlBeans | |
XmlJson | XMLSecurity DataFormat | XStream | Zip DataFormat | Zip File DataFormat |
ServiceMix non nasce come Web Container ma permette lo stesso di deployare delle web application.
In particolare risulta molto interessante qualora l’applicazione segua l’approccio precedente.
Il WAR Deployer è un bundle che si occupa del deploy di Web Application su Karaf/ServiceMix
Cosa fa?
Ma basta?
Web-ContextPath
(l'applicazione verrà pubblicata al context path specificato da questo header)Bundle-ClassPath: .,WEB-INF/classes
(informa Karaf/ServiceMix dove sono i bytecode)É raccomandato fare uno Skinny war e usare dipendenze di Bundle (usando il maven-war-plugin e il maven-bundle-plugin)
Abbiamo Finito?
...anche gwt-servlet.jar ha bisogno di modifiche!
GWT non è predisposto per essere usato in OSGi.
Non è un bundle perchè al manifest della gwt-servlet.jar mancano gli header OSGi.
E allora?
Ci sono 4 strade per ottenere un gwt-servlet.jar OSGi compliant e poterlo deployare su Karaf/ServiceMix.
git fetch https://gwt.googlesource.com/gwt refs/changes/51/5351/7
git checkout FETCH_HEAD
ant dist
install -s mvn:com.google.gwt/gwt-servlet/2.6.0
install -s wrap:mvn:com.google.gwt/gwt-servlet/2.6.0$Bundle-Name=GWT-Servlet&Bu
ndle-SymbolicName=com.google.gwt.gwt-servlet&Bundle-Version=2.6.0&Export-Packag
e=com.google.gwt.user.client.rpc.*,org.hibernate.validator.engine,com.google.we
b.bindery.requestfactory.vm.impl.*,!javax.validation,!org.hibernate.validator.*
,!*.client.*,!*.impl.*,*&Import-Package=javax.servlet.*,javax.validation;resolu
tion:=optional,org.json;resolution:=optional,javax.validation.*;resolution:=opt
ional,org.json.*;resolution:=optional,!com.google.gwt.*,*;resolution:=optional
install -s mvn:org.apache.servicemix.bundles/org.apache.servicemix.bundles.gwt-servlet/2.6.0_1
install -s mvn:com.google.gwt/gwt-servlet/2.6.0
Abbiamo adattato alcuni esempi della distribuzione GWT per funzionare su Karaf/ServiceMix:
https://github.com/cristcost/gwt-karaf-examples
Tra poco faremo vedere un esempio che mette insieme tutte le tecnologie raccontate fino ad ora.
Dal libro EIP:
“I am designing several applications to work together through Messaging. Each application has its own internal data format.”
“How can you minimize dependencies when integrating applications that use different data formats?”
A noi piace l’approccio Java first:
Usiamo annotazioni JaxB e JaxWS per generare dal nostro modello gli XML Schema e WSDL.
Troviamo che cominciare dagli oggetti sia più naturale, lineare e agile:
@XmlAccessorType(XmlAccessType.FIELD) @XmlType(name = "SampleReport") public class SampleReport implements Serializable { @XmlAttribute(required = true, name = "sensorId") @XmlSchemaType(name = "anyURI") private String sensorId; @XmlAttribute(required = false, name = "sampleType") private String sampleType; @XmlElement(required = false, name = "dailySampleReport") private List<DailySampleReport> dailySampleReports;
<xs:complexType name="SampleReport"> <xs:attribute name="sensorId" type="xs:anyURI" use="required"/> <xs:attribute name="sampleType" type="xs:string"/> <xs:sequence> <xs:element name="dailySampleReport" type="tns:DailySampleReport" maxOccurs="unbounded" minOccurs="0" /> </xs:sequence> </xs:complexType>
@XmlAccessorType(XmlAccessType.FIELD) @XmlType(name = "SampleReport") public class SampleReport implements Serializable { /** The sensor id. */ @XmlAttribute(required = true, name = "sensorId") @XmlSchemaType(name = "anyURI") private String sensorId; /** The sample type. */ @XmlAttribute(required = false, name = "sampleType") private String sampleType; /** The daily sample reports. */ @XmlElement(required = false, name = "dailySampleReport") private List<DailySampleReport> dailySampleReports; // ...
@WebService(name = "SensormixService", targetNamespace = "http://developers.google.com/gdgfirenze/ns/service") @SOAPBinding(parameterStyle = ParameterStyle.WRAPPED, style = Style.DOCUMENT, use = Use.LITERAL) public interface SensormixService { @WebMethod(action = "urn:#listSensorsIds") @RequestWrapper(localName = "listSensorsIdsIn", targetNamespace = "http://developers.google.com/gdgfirenze/ns/service") @ResponseWrapper(localName = "listSensorsIdsOut", targetNamespace = "http://developers.google.com/gdgfirenze/ns/service") @WebResult(name = "sensorId") List<String> listSensorsIds(); @WebMethod(action = "urn:#listSamplesTypes") @RequestWrapper(localName = "listSamplesTypesIn", targetNamespace = "http://developers.google.com/gdgfirenze/ns/service") @ResponseWrapper(localName = "listSamplesTypesOut", targetNamespace = "http://developers.google.com/gdgfirenze/ns/service") @WebResult(name = "sampleType") List<String> listSamplesTypes(); // ...
Infine, se si vuole usare il data model anche dentro un progetto GWT, basta aggiungere un modulo .gwt.xml:
<?xml version="1.0" encoding="UTF-8"?> <!-- When updating your version of GWT, you should also update this DTD reference, so that your app can take advantage of the latest GWT module capabilities. --> <!DOCTYPE module PUBLIC "-//Google Inc.//DTD Google Web Toolkit 2.5.1//EN" "http://google-web-toolkit.googlecode.com/svn/tags /2.5.1/distro-source/core/src/gwt-module.dtd"> <module> <!-- Specify the paths for translatable code --> <source path='model' /> <source path='service' /> </module>
Contiene un servizio che espone funzionalità di memorizzazione e recupero di informazioni
Il servizio viene registrato in OSGi tramite Spring DM
<osgix:cm-properties id="dataSourceProperties" persistent-id="sensormix.jpa.persistenceunit"> <prop key="sensormix_db.driverClassName">org.hsqldb.jdbcDriver</prop> <prop key="sensormix_db.url">jdbc:hsqldb:mem:sensormix_db</prop> <prop key="sensormix_db.username">sa</prop> <prop key="sensormix_db.password"></prop> </osgix:cm-properties> <osgi:service ref="sensormixService"> <osgi:interfaces> <value>com.google.developers.gdgfirenze.service.SensormixService</value> <value>com.google.developers.gdgfirenze.osgi.SensormixAdminInterface</value> </osgi:interfaces> </osgi:service>
public class SensormixServiceJpaImpl implements SensormixService, SensormixAdminInterface { private EntityManagerFactory entityManagerFactory; @Override public List<String> listSensorsIds() { List<String> result = new ArrayList<String>(); try { EntityManager em = entityManagerFactory.createEntityManager(); TypedQuery<String> q = em.createQuery("SELECT s.id FROM JpaSensor s", String.class); result.addAll(q.getResultList()); em.close(); } catch (Exception e) { logger.log(Level.SEVERE, "Error during sensors list retrieving", e); } return result; }
<bean id="emf" class="org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean"> <property name="persistenceUnitName" value="sensormix_db" /> <property name="jpaVendorAdapter"> <bean class="org.springframework.orm.jpa.vendor.EclipseLinkJpaVendorAdapter"> <property name="showSql" value="true" /> </bean> </property> <property name="jpaProperties"> <props> <prop key="eclipselink.ddl-generation">create-tables</prop> <prop key="eclipselink.logging.level">INFO</prop> <prop key="eclipselink.weaving">false</prop> <prop key="javax.persistence.jdbc.driver">${sensormix_db.driverClassName}</prop> <prop key="javax.persistence.jdbc.url">${sensormix_db.url}</prop> <prop key="javax.persistence.jdbc.user">${sensormix_db.username}</prop> <prop key="javax.persistence.jdbc.password">${sensormix_db.password}</prop> </props> </property> </bean> <bean id="sensormixService" class="com.google.developers.gdgfirenze.dataservice.SensormixServiceJpaImpl"> <property name="entityManagerFactory" ref="emf" /> </bean>
Definisce le rotte Camel per l'ingresso dei campioni da Android, Arduino e iOS
Utilizza quasi esclusivamente configurazione via Spring XML
Unica eccezione: la classe SampleAdapter che trasforma da protocol buffer al nostro data model tramite codice java
<route> <from uri="mina2:udp://0.0.0.0:10081" /> <to uri="seda:jsonEntry" /> </route>
<route> <from uri="jetty:http://0.0.0.0:10080/sensormixSamplesEndpoint" /> <to uri="seda:jsonEntry" /> <setHeader headerName="Content-Type"> <constant>application/json</constant> </setHeader> <to uri="velocity:vm_templates/json_response_template.vm" /> </route>
<route> <from uri="seda:jsonEntry" /> <convertBodyTo type="java.lang.String" /> <unmarshal> <xmljson elementName="item" arrayName="list" rootName="root" /> </unmarshal> <to uri="xslt:xslt_adapters/raw2cdm_adapter.xsl" /> <unmarshal> <jaxb contextPath="com.google.developers.gdgfirenze.service" /> </unmarshal> <to uri="seda:serviceEntry" /> </route>
<route> <from uri="netty:tcp://0.0.0.0:10082/?decoders=#length-decoder&sync=false" /> <unmarshal> <protobuf instanceClass="com.google.developers .gdgfirenze.protobuf.SensormixProtos$SampleMessage" /> </unmarshal> <bean ref="sampleAdapter" method="transform" /> <to uri="seda:serviceEntry" /> </route> <bean id="sampleAdapter" class="com.google.developers.gdgfirenze.integration.SampleAdapter" />
package com.google.developers.gdgfirenze.integration; public class SampleAdapter { public SamplesPayload transform(SampleMessage message) { SamplesPayload ret = new SamplesPayload(); // process 'SampleMessage' and return the adapted 'SamplesPayload' return ret; } }
<osgi:reference id="sensormixService" interface="com.google.developers.gdgfirenze.service.SensormixService" timeout="30000" cardinality="1..1" /> <route> <from uri="seda:serviceEntry" /> <to uri="bean:sensormixService?method=recordSamples(${body.samples})" /> </route>
Abbiamo visto che per il deploy di una Web Application GWT su Karaf/ServiceMix dobbiamo garantire che:
Noi cosa abbiamo fatto?
<instructions> <Bundle-SymbolicName>${project.artifactId}</Bundle-SymbolicName> <Bundle-Description>${project.description}</Bundle-Description> <Web-ContextPath>/${project.artifactId}</Web-ContextPath> <Bundle-ClassPath>.,WEB-INF/classes</Bundle-ClassPath> <Import-Package> com.google.gwt.user.client.rpc.*, com.google.gwt.user.client.rpc.core.com.google.gwt.core.shared, com.google.gwt.user.client.rpc.core.java.lang, com.google.gwt.user.client.rpc.core.java.math, com.google.gwt.user.client.rpc.core.java.sql, com.google.gwt.user.client.rpc.core.java.util, com.google.gwt.user.client.rpc.core.java.util.logging, com.google.gwt.user.server.rpc.core.java.lang, com.google.gwt.user.server.rpc.core.java.util, !com.google.gwt.*.client.*, * </Import-Package> </instructions>
Si tolgono le dipendenze dalla lib:
<packagingExcludes>WEB-INF/lib/, WEB-INF/classes/META-INF/</packagingExcludes>
Si istruisce Maven di copiare il Manifest al posto giusto:
<archive> <manifestFile> ${project.build.outputDirectory}/META-INF/MANIFEST.MF </manifestFile> </archive>
Nel file SensormixAdminApp.gwt.xml:
<inherits name='com.google.developers.gdgfirenze.Sensormix' />
Nel pom.xml:
<dependency> <groupId>com.google.developers.gdgfirenze</groupId> <artifactId>sensormix-datamodel-api</artifactId> <version>${project.version}</version> </dependency> <dependency> <groupId>com.google.developers.gdgfirenze</groupId> <artifactId>sensormix-datamodel-api</artifactId> <version>${project.version}</version> <classifier>sources</classifier> </dependency>
Instanziare la service interface usando GWT.create():
GwtSensormixServiceAsync sensormixService = GWT.create(GwtSensormixService.class);
Fare la chiamata al servizio:
sensormixService.listSensorsIds(new AsyncCallback() { @Override public void onFailure(Throwable caught) { // handle the request failure } @Override public void onSuccess(List result) { // handle the response from the service } });
SensormixServiceProxy.java è un servizio GWT che usa un servizio OSGi. Nella inizializazione ottiene dei riferimenti al servizio utilizzando le API del Framework.
public void init() throws ServletException { final BundleContext context = FrameworkUtil.getBundle(this.getClass()).getBundleContext(); tracker = new ServiceTracker(context, SensormixService.class.getName(), null); tracker.open(); }
Come viene usata l’istanza del servizio OSGi?
private SensormixService getService() { return (SensormixService) tracker.waitForService(10000); } public List<String> listSensorsIds() { return getService().listSensorsIds(); }
HttpPost httppost = new HttpPost(url.toString()); httppost.setHeader("Content-type", "application/json"); StringEntity se = new StringEntity(bodyForHttpPostRequest); se.setContentEncoding(new BasicHeader(HTTP.CONTENT_TYPE, "application/json")); httppost.setEntity(se); HttpResponse response = httpclient.execute(httppost); String temp = EntityUtils.toString(response.getEntity()); logger.info("JSON post response: " + temp);
Tag tag = getIntent().getParcelableExtra(NfcAdapter.EXTRA_TAG); StringBuilder id = new StringBuilder(); byte[] data = tag.getId(); for (int i = 0; i < data.length; i++) { id.append(String.format("%02x", data[i])); if (i < data.length - 1) { id.append(":"); } } JSONObject jsonSamplePacket = new JSONObject(); JSONObject obj = new JSONObject(); jsonSamplePacket.put("sample", obj); obj.put("device_id", "the device id"); obj.put("time", dateFormat.format(new Date())); obj.put("nfc", id); Intent intent = new Intent(this, DataSenderService.class); intent.putExtra(DataSenderService.INTENT_EXTRA, jsonSamplePacket.toString()); startService(intent);
<features name='sensormix-1.0.0'> <feature name="sensormix-core" version="1.0.0"> <bundle>mvn:com.google.developers.gdgfirenze/sensormix-datamodel-api/1.0.0</bundle> </feature> <feature name="sensormix-dataservice" version="1.0.0"> <feature version="1.0.0">sensormix-core</feature> <feature>spring-orm</feature> <!-- ... --> <bundle>mvn:mysql/mysql-connector-java/5.1.26</bundle> <bundle>mvn:org.apache.servicemix.bundles/org.apache.servicemix.bundles.commons-dbcp/1.4_3</bundle> <bundle>mvn:org.apache.servicemix.bundles/org.apache.servicemix.bundles.javax-inject/1_2</bundle> <bundle>mvn:org.eclipse.persistence/javax.persistence/2.1.0</bundle> <bundle>mvn:org.eclipse.persistence/org.eclipse.persistence.jpa/2.5.0</bundle> <!-- ... --> <bundle>mvn:com.google.developers.gdgfirenze/sensormix-dataservice-bundle/1.0.0</bundle> </feature> <feature name="sensormix" version="1.0.0"> <feature version="1.0.0">sensormix-dataservice</feature> <feature version="1.0.0">sensormix-webservice</feature> </feature> </features>
<plugin> <groupId>org.apache.karaf.tooling</groupId> <artifactId>features-maven-plugin</artifactId> <version>${features.plugin.version}</version> <executions> <execution> <id>add-features-to-repo</id> <phase>package</phase> <goals> <goal>add-features-to-repo</goal> </goals> <configuration> <descriptors> <descriptor>com.google.developers.gdgfirenze /sensormix-deploy-features/1.0.0/xml/features</descriptor> </descriptors> <features> <feature>sensormix/1.0.0</feature> </features> <repository>target/local-repo</repository> </configuration> </execution> </executions> </plugin>
Si è scelto di utilizzare un’unica classe per tutti i sample (con un campo byte[]
che contiene la serializzazione (Kryo) del sample).

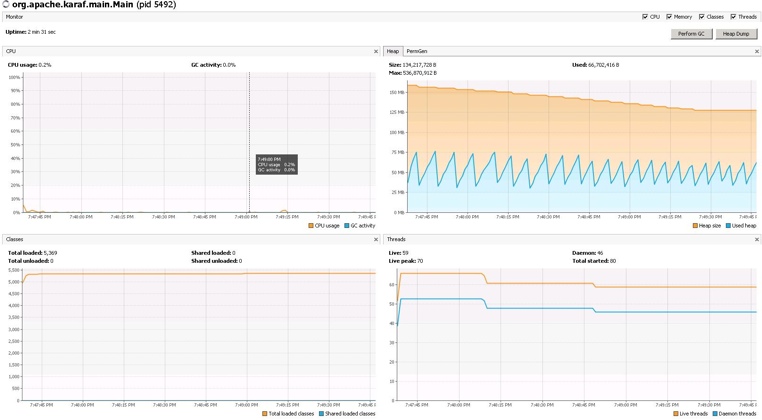

Sfruttando l’astrazione di JPA sono stati fatti benchmark di occupazione e performance per supportare le scelte e validare la soluzione.
SensorMix è stato sviluppato in Team utilizzando Maven ed Eclipse.
In particolare:
Cristiano Costantini cristiano.costantini@gmail.com
Giuseppe Gerla giuseppe.gerla@gmail.com
Michele Ficarra miche.ficarra@gmail.com
Sergio Ciampi sergio.ciampi@gmail.com
Stefano Cigheri stefano.cigheri@gmail.com
